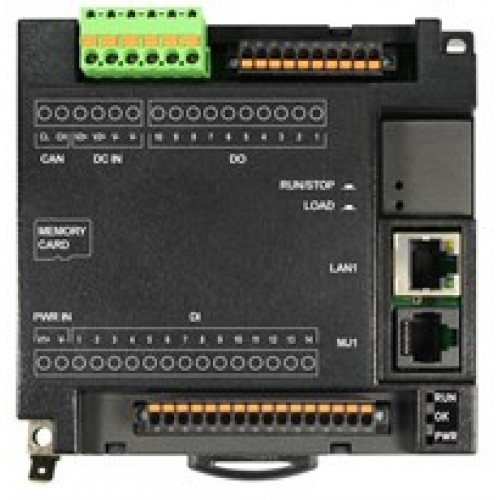

Horner - RCC1410 Controller

Horner - RCC1410 Controller
Brand: Horner
Product Code: HE-RCC1410
Availability: Call - 03 8753 4665
List-Price: AU$0.00
   - OR -

HE-RCC1410 main features:

  • Ladder Logic Memory 128KB
  • Logic Scan Rate 0.013 mS/K
  • Ethernet Support Standard
  • Local Comment Storage Yes
  • Built-in I/O Points 24
  • Digital I/O Max 2048 / 2048
  • Analog I/O Max 512 / 512
  • Serial Ports 2
  • Remote Access WebMI, HTTP or EnvisionRV
  • USB Ports (A & Mini-B) No
  • Integrated CsCan Network Standard
  • Height (inches/mm) 4.370" / 111 mm
  • Width (inches/mm) 4.567" / 116 mm
  • Depth (inches/mm) 1.411" / 35.84 mm

RCC SERIES
Simple Needs, Intuitive Design
Provides original equipment manufacturers
(OEMs), integrators, and automation end-users
with flexible, functional I/O and simple all-inone
controller options without a built-in screen.



Specifications

Controller

Protocols CsCAN, Ethernet
Ethernet Connector RJ45, Auto MDIX
Serial Port 2 (1xRS232, 1×2-wire RS485)
Program Memory Size 128 KB
Floating Point Support yes
AutoTune PID Capable yes
Motion Commands yes

I/O

Digital DC Inputs per Module 14
DC Digital Input Voltage Range 12 VDC / 24 VDC
Digital DC Outputs per Module 10
Digital DC Output – Max Output Supply Voltage 30 VDC
Digital DC Output – Max Inrush Current 500mA per channel

Physical Specifications

Weight 10 oz. / 325.0 g
Housing Type Plastic (Flame retardant, UV resistant)
Mounting DIN Rail / Panel Mounting
Terminal Type Spring Clamp 3.5 mm, Removable

Operating Specifications and Standards

Operating Temperature -10 to 60°C
Storage Temperature -10 to 70°C
Humidity (non-condensing) 5 to 95%
