Horner 10.1" Colour Touch

EXL10 - Powerful All-in-One Controller with Integrated I/O and Full Ethernet

The XL10e All-in-One controller with a built-in 32,000 colour TFT touch screen, I/O-Modules, networking options, removable MicroSD Card slot and USB ports. It is programmable using Horner APG's industry recognised CscapeTM software and can control a wide range of different processes and machines from small to medium applications.

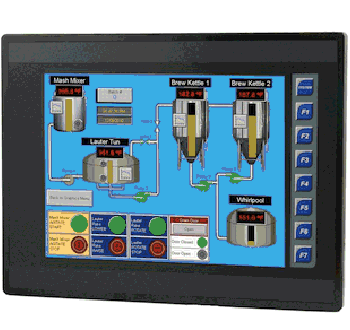

EXL10 10.4" VGA Colour Touch Screen OCS

The new EXL10 Operator Control Station (OCS) offers another graphical display option to the already popular XL series of Controllers. All-in-one Controller with Powerful Logic Engine and built in Digital & Analog I/O 640 x 480 color touch display, with a high-resolution resistive touch screen (32,000 colours) 2 x USB (2.0) Ports including 1 (min-B 5pin) for easy programming and application loading and 1 Host port for exchanging files with USB FLASH drives Dual 10/100 Ethernet for Factory and World-wide Networking  (supporting Modbus/TCP Master/Slave, FTP and HTTP) Dual CAN ports for Fieldbus flexibility. System button and seven function keys And there's more!   EXL10 is ultra fast! - 0.013 ms/k scan Online Change Capability 2GB flash memory storage Color coded, removable I/O terminals for easy wiring in the field Quick change backup battery compartment with 2 connectors Two RS232/RS-485 termination Five different models are available with built-in I/O and one without I/O

For a wide range of Applications

As a compact, powerful controller, EXL10e can be used in literally thousands of applications from Machines to Mobile and Process Control Applications. High-speed Ethernet, CANBus and Modbus options offer you the perfect networking mix.

The XL Series comes with a wide range of field installable add-on communications options. You can select from the following: 10/100MBit Ethernet, GSM/GPRS cellular, telephone modem and radio modems. All options support remote Cscape™ programming, Modbus master and slave and OPC. Both the 10/100 Ethernet and GSM/GPRS cellular also support Modbus/TCP slave. A GPS receiver unit is also available for mobile applications.

Connectivity

I/O Expansion EXL10e I/O expansion is not limited to its Built-in I/O. SmartStix is a high-speed I/O and can be distributed over distances of up to 1km. SmartMod based I/O is a cost effective solution of adding another set of mixed I/O.

Architecture Supports CsCAN or CANopen high-speed networking as standard and Ethernet as a field-installable option. Single-point-of-connect (only CsCAN) allows seamless communications between the PC running CscapeTM or our PC visualisation software EnvisionTM and any controller. In the diagram above, XLe and XL6 ' are accessed by the PC over Ethernet and CsCan through XLt.

Applications

As a compact, powerful controller, the EXL10e can be used in literally thousands of applications. From OEM machine control to machine monitoring in a plant environment, the XL Series can be instrumental in keeping you or your customer's automation activities running smoothly. Future expansion is not a concern because the EXL10e is part of the wide-ranging  OCS product line - programmable throughout with a single FREE software package, Cscape™.

Customisation

OCS is designed to look like a "generic" operator station, fitting in with most cabinet and console designs and color schemes. But sometimes adding an individualized look can mean a world of difference in the overall usefulness of an operator station and the marketing of your machine or system.

• Apply a label on the overlay to add your company logo
• Substitute a custom keypad with your company's logo, colors and industry terms
• Design overlays in any language

All connectors are removable.
