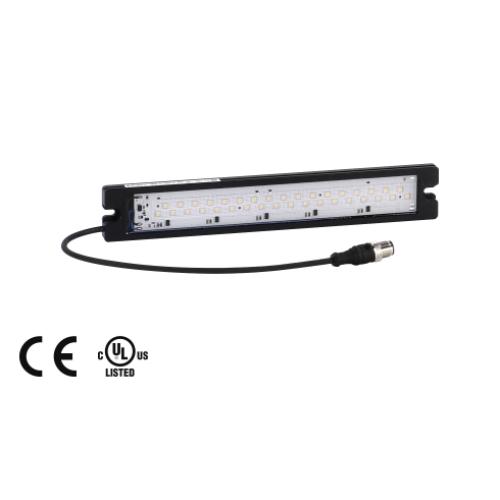

di-soric - Machine Lighting 250 mm
Product Code: MB-N-250-K-B3
Availability: In Stock
Availability: In Stock
List-Price: AU$0.00
- High light intensity thanks to most modern power LEDs
- High colour rendering guaratees safety at the workplace according to DIN EN 12464-1 / EN 12464-1
- Long-life thanks to intelligent thermal management
- Homogeneous wide light field for the optimal machine illumination
- High protection class IP 67
- Trigger input for external control
- Dimmable via PWM signal
- Magnetic Holder Set available as an option
- Adjustable Mounting Bracket available as an option
- Attachable Diffusion filter available as an option
| Illuminated area | 30 x 220 mm |
| Light colour | White (5000 K), (LED) |
| Emission angle FWHM | 120° |
| Luminous flux | 1100 lm |
| Color rendering index CRI | 85 |
| Illumination intensity |
1.8 klx (0.5 m / 100%) 530 Lux (1.0 m / 100%) |
| Service voltage | 24 V DC ± 5%, (Supply Class 2) |
| No-load current | 450 mA, (24 V DC) |
| Trigger input low level | 0 ... < 5,0 V |
| Trigger input high level | > 8,0 ... 25,2 V |
| Power | 10,8 W (24 V) |
| Shock-/vibration load | 10 ... 55 Hz / 1,0 mm / 30 g |
| Inverse polarity protection | Yes |
| On-delay time (Trig.) | 0,050 ms |
| Switch off delay (Trig.) | 0,050 ms |
| Ambient temperature, operation | -20 … +40 °C |
| Protection class | IP 67 |
| Protection degree | III, operation on protective low voltage |
| Risk group (DIN EN 62471) | Free group |
| Casing material | Aluminium black anodized |
| Material | PU, crystal clear (Window) |
| Connection | Cable, 0,3 m, with connector, M12, 3-poled |
| Weight | 210 g |
| Connecting cable | VK ... |
